Squadron 2.0 Sport/Squadron Sae/S2 Sport Fog Pocket Light Kit Ford 2017-20 F-150 Raptor Amber Baja Designs

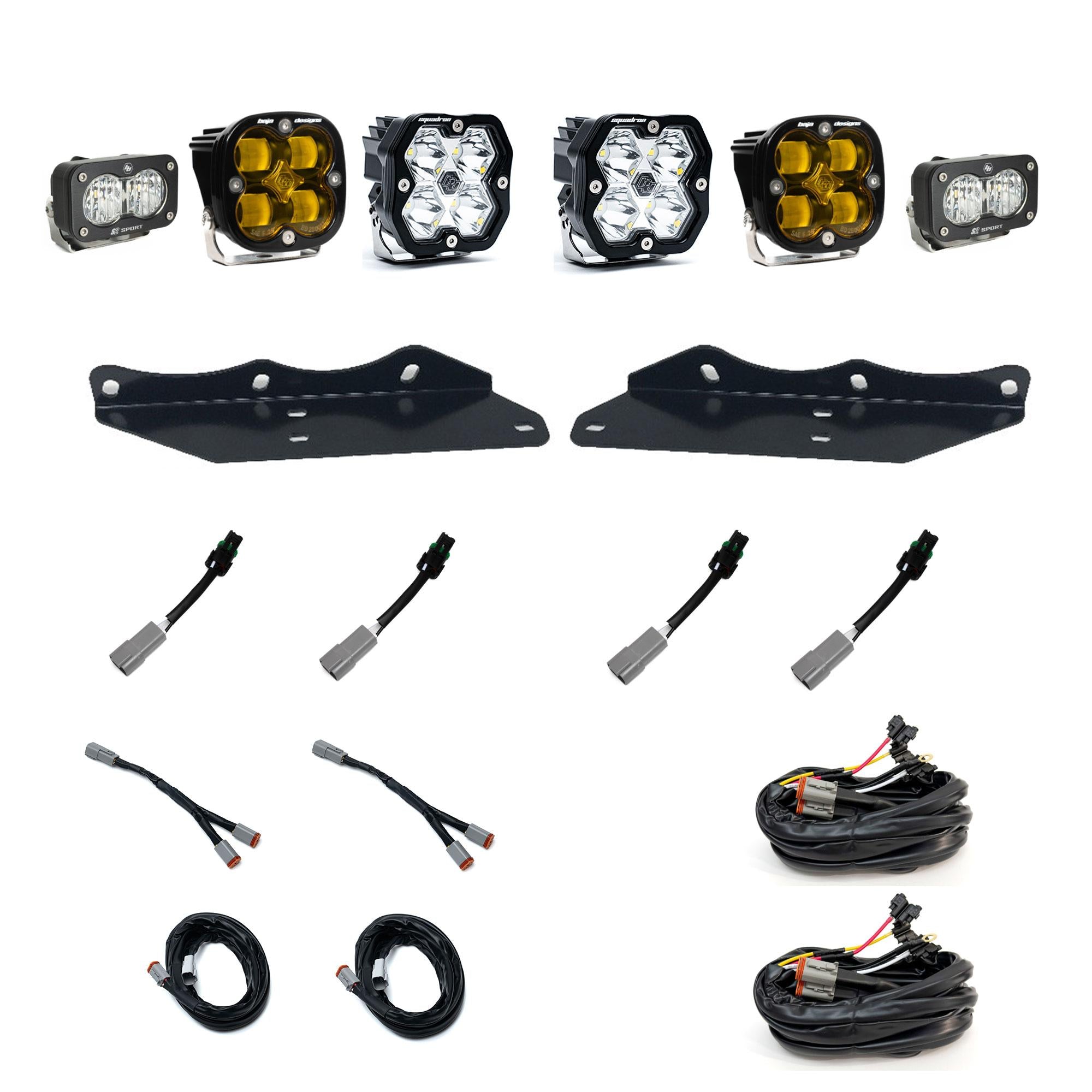

The Ford Raptor was built to go anywhere. Now your lighting can keep up. The Baja Designs Squadron 2.0 Sport LED Fog Light Kit for the Ford Raptor (2017-2020) delivers a three-light combination engineered for both pavement and the unknown beyond it - no compromises, no swapping hardware.

On-road legal, and Off-road ready. The Squadron Sae handles Zone 1 with precision - 2,420 lumens per light, aspheric projector optics, and a sharp cutoff beam that meets Sae J583 fog lamp standards. Whether you're pushing through dust, rain, fog, or snow, it cuts through the mess and keeps you compliant while doing it.

When the road ends, the S2 Sport steps in with 1,581 lumens per light, and the Squadron 2.0 Sport takes over in spot configuration at 3,200 lumens and 30W per light - a 26 percent jump in performance over the previous generation. Updated lens patterns and redesigned optics mean better beam control when the terrain demands it most.

The all-new Squadron 2.0 Sport includes a durable 4-pin Deutsch connector, an all-new nine-color user-selectable backlight gives your lighting package flair, and enhanced uService features - clip-in reflectors for fast lens swaps and a redesigned gasket for long-term sealing. This is gear you can maintain, personalize, and trust.

Everything you need for a clean, direct install is in the box. No additional parts required. Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty.

Note: uService is not available on all Sae products. Tampering will void the warranty. Limited Lifetime Warranty is valid only when the product is returned for repair.

Squadron 2.0 Sport Specifications (Per Light):

• Lumens: 3,200
• Watts/Amps: 30W/2.2A

S2 Sport Specifications (Per Light):

• Lumens: 1,581
• Watts/Amps: 12W/0.9A

Squadron Sae Specifications (Per Light):

• Lumens: 2,420
• Watts/Amps: 29W/2.1A

The Baja Designs Advantage:

• Satisfaction Guarantee - 30-Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Safely Driving LEDs at 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

• Specifications:
  • Brightness (Lumens): 3,200 lm
  • Amperage Rating (A): 30W / 2.2A at 13.8V
  • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
  • Description: Backlight: 9-Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch
