Squadron 2.0 Pro A-Pillar Light Kit Ford 2021-27 Bronco 2022-24 Bronco Raptor Upfitter Baja Designs

Squadron 2.0 Pro A-Pillar LED Light Kit is the ultimate upgrade for the Ford Bronco and Bronco Raptor owners who want significantly more trail visibility while keeping their lighting package sleek and compact. Purpose-built for the Bronco, this complete two-light kit is engineered to complement the vehicle's body lines and deliver maximum performance exactly where you need it. With mounting brackets included, an option for an upfitter or toggle harness, and all essential hardware, installation is seamless and straightforward.

Squadron 2.0 Pro features next-generation optics and an impressive 5,921 lumens at 65W each - a 21 percent increase in performance over the previous generation - while delivering improved beam control and higher efficiency. The refined optical system projects a cleaner, farther-reaching, and wider beam while minimizing unwanted spill, giving enthusiasts more usable illumination for any terrain. Squadron 2.0 Pro provides unmatched clarity and confidence when the sun goes down.

New enhancements include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new Rgb backlight with nine selectable colors to match your vehicle's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection. A newly engineered mounting bracket offers increased vertical adjustability, giving Bronco owners more precise aiming and an expanded field of view - ideal for spotting hazards and obstacles on the trail.

Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty, this A-Pillar kit delivers premium performance, rugged reliability, and peace of mind for every adventure.

Squadron 2.0 Sport Features:

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• Rgb backlight with 9 selectable colors to match any vehicle
• New clip-in reflectors stay secure during lens changes, improving uService
• New gasket design improves sealing and protection against the elements
• Redesigned mounting bracket allows greater vertical adjustability
• Standard 4-pin Deutsch connector for improved wiring harness durability

Specifications (Per Light):

• Lumens: 5,921
• Watts/Amps:65/4.7A at 13.8V
• Operational Voltage: 12-32V
• IP69K Rated

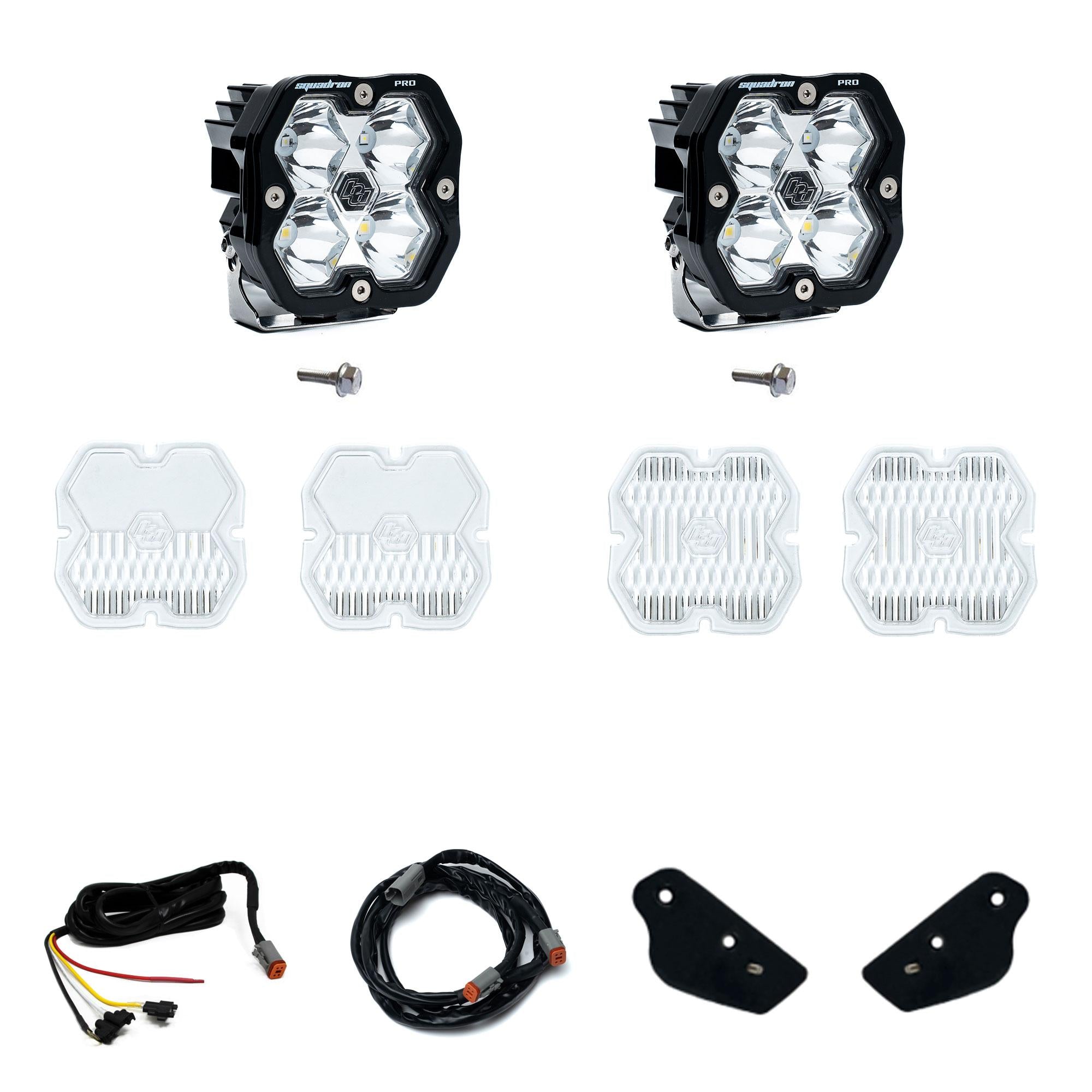

Includes:

• (2x) Squadron 2.0 Pro (Clear/Spot)
• (2x) A-Pillar Plates
• (1x) Toggle Switch 4-pin Harness or Upfitter Harness
• (1x) Deutsch 4-Pin 55 Inch Splitter (upfitter kit only)
• (2x) Squadron 2.0 Lens Kit (Clear/Driving Combo)
• (2x) Squadron 2.0 Lens Kit (Clear/Wide Cornering)
• All necessary mounting hardware

The Baja Designs Advantage:

• Satisfaction Guarantee - 30-Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Safely Driving LEDs at 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

• Specifications:
  • Brightness (Lumens): 5,921 lm
  • Amperage Rating (A): 65W / 4.7A at 13.8V*
  • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
  • Description: Backlight: 9-Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch
